Codepoint CS1060 - Temperature & Humidity Sensor | $39.00
Water Leak Sensor
Codepoint CS1060 - Temperature & Humidity Sensor | $39.00

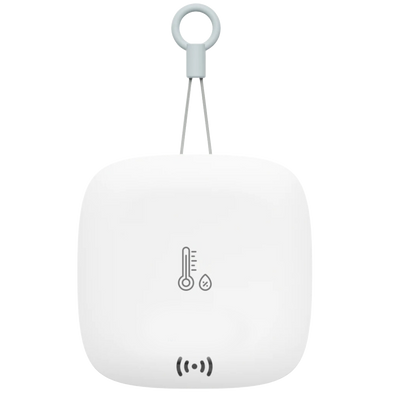

The Codepoint CS1060 temperature and humidity monitor is small and portable. It is designed for long-range, low-power monitoring of temperature and humidity conditions indoors and outdoors.

This sensor, which features highly accurate thermometer and hygrometer capabilities, immediately detects when temperature and humidity levels fall out of range, allowing you to receive real-time alerts via the LANA IoT Platform.

What’s Included

  • Temperature Sensor
  • Two AAA Batteries
  • Install Instructions
  • Customer Support
  • 12 Month Warranty

Specifications

  • LoRaWAN v1.03 Class A, Coralink™ Class A device
  • U.S. 923 MHz, E.U. 868 MHz, China 470 MHz, and other frequencies available
  • Color: White
  • Dimensions: [L x W x D]: 2.44 x 2.44 x 0.87 inches (62 x 62 x 22 mm)
  • Multi-color status LED (underside)
  • Set button (underside)
  • Power: two (2) lithium, non-rechargeable AAA batteries (3V DC)
  • Operating Temperature Range: -22°F – 158°F (-30°C – 70°C)
  • Operating Humidity Range: < 95% non-condensing
  • Temperature Value Resolution: 0.1 °F/°C
  • Humidity Value Resolution: 0.1%
  • For Indoor and Outdoor Use
  • IP Rating: IP67

Shipping & Returns

  • All Codepoint temperature and humidity sensors sold by CallPass have a 30-day return policy from the time the order is placed and a one (1) year manufacturer warranty.

  • 30 Day Guarantee

    Experience the Codepoint temperature and humidity sensor first hand. If it doesn't meet your expectations with the first 30 days, we'll issue a full refund, no questions asked.

  • U.S. Based Customer Support

    You will be assigned a dedicated account manager to go hand-in-hand with our full US-based support team.

  • 1 Year Warranty

    Monitor your property temperature and humidity worry-free, we offer comprehensive coverage against any manufacturing flaws.

LANA IoT x Codepoint Temperature & Humidity Sensor

How Does It Work

What Are The Benefits

Suggested Location Uses

Industry Solutions

Codepoint CS1060 Temperature & Humidity Sensor FAQ's

How Do You Add The Codepoint CS1060 Temperature & Humidity Sensor to The LANA IoT Platform?

When you purchase the Codepoint CS1060 Temperature & Humidity sensor(s) from the OrderLANA.com store we automatically add the sensor(s) to your LANA IoT account. You can search for each sensor in the platform by using the serial number listed on the sensor.  Once you have located a sensor you can then change the name, add a picture of the location is it placed in, and set your alert preferences.



How Is The Codepoint CS1060 Temperature & Humidity Sensor Powered On?

The Codepoint CS1060 Water Temperature and Humidity is powered by two AAA batteries which provide 2+ years of operation in normal conditions.

To power on the sensor you need to:

1) Remove the four seal rubber pads from each corner on the base of the sensor

2) Unscrew the screws at the base of the sensor and add the two AAA batteries

3) Screw the base back on and press the 'set button' on the base to turn the sensor on

4) The device will activate, blinking red two time when joining the network. When successfully connected to the LoRa network the sensor will blink green four times. You will now see the sensor status and location updated in your LANA IoT Platform.

 The LED status indicators is shown below.



Can the Codepoint Temperature & Humidity Sensor Be Used Outdoors?

Yes, the Codepoint CS1060 Temperature and Humidity Sensor can be used outdoors. This sensor is waterproof with a certified IP67 rating.

Does the Codepoint CS1060 Temperature & Humidity Sensor Need Wi-Fi Connection To Work?

No, the Codepoint CS1060 Temperature & Humidity Sensor does NOT require Wi-Fi. This long range, lower power sensor connects to the LANA IoT Platform using the LoRaWAN network/connectivity.

What Are The Size Dimensions Of The Codepoint CS1060 Sensor?

The Codepoint CS1060 temperature and humidity sensor dimensions are; [L x W x D]: 2.44 x 2.44 x 0.87 inches (62 x 62 x 22 mm).
